Belden 8762 060U1000 Electronic Cable, 2/20 AWG Str TC, PE Ins, OS, PVC Jkt, CM, 1000' (304.8m) UnReel, Chrome
8762 060U1000
|7B-87626U1
Shop All Belden
Belden 8762 060U1000 Electronic Cable, 2/20 AWG Str TC, PE Ins, OS, PVC Jkt, CM, 1000' (304.8m) UnReel, Chrome
8762 060U1000 | 7B-87626U1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

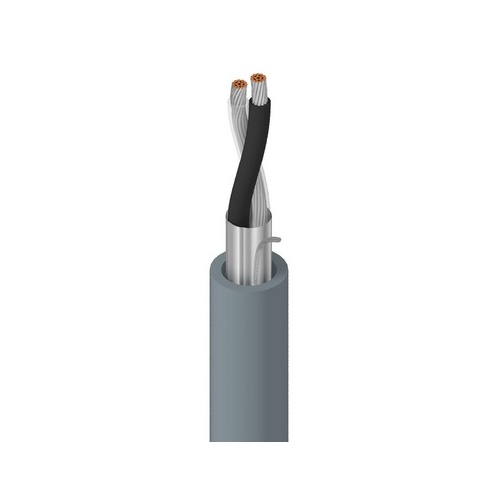

20 AWG stranded (7x28) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil shield (100% coverage), 20 AWG stranded TC drain wire, PVC jacket.
General Information
Name: Belden 8762 060U1000 Electronic Cable, 2/20 AWG Str TC, PE Ins, OS, PVC Jkt, CM, 1000' (304.8m) UnReel, Chrome
Category: Belden, Wire & Cable, Security & Access Control Cables, General Shielded Cables
UPC Code: 612825215349
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-87626U1 Application/Usage ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring, 0-10v, low voltage analog signals (4-20ma Brand Name Belden Country of Origin MX Manufacturer Part Number 8762 060U1000 Packaged Quantity 305
American Wire Gauge 20AWG Cable Rating UL AWM Style 2092 Cable Style Twisted Pair Cable Type Tinned Copper Conductor Count 2 Conductor Material Tinned Copper CPR Euroclass Rating Eca,EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) Jacket Type Standard Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Certifications & Standards CM,Article 800,IEC 60332-1-2,CM,CM,EU Directive 2003/11/EC (BFR),IEC 60332-1-2,CM,Article 800,IEC 60332-1-2,CM UL Listed Yes
Operating Temperature (T-T) -20-60°C
Cable Length 1000' Color Silver Insulation Material FEP (Fluorinated Ethylene Propylene) Jacket Material Polyolefin,PE (Polyethylene,PP (Polypropylene)
Voltage Rating 300V
Length 1000'
Limited Warranty 10-Year
Features low voltage analog signals (4-20ma, 0-10v); low voltage digital control (24v); line level audio; computer communication; panel wiring,N/A to N/A Indoor/Outdoor Indoor
