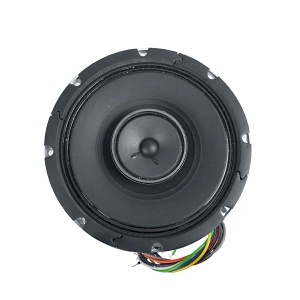

Lowell CT830A‑T72 8" Coaxial Speaker with 25V/70V Transformer, 20W
CT830A-T72
|YL-CT830AT72
Shop All Lowell Manufacturing
Lowell CT830A‑T72 8" Coaxial Speaker with 25V/70V Transformer, 20W
CT830A-T72 | YL-CT830AT72
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
High performance speaker assembly CT830A-T72 features an 8' 20W coaxial driver with post-mounted coaxially positioned tweeter and dual voltage (25V/70V) 5W transformer. For quality paging, public address and background music. Order grille and enclosure separately.
Main Features
- Driver - 8" 20W coaxial speaker with high frequency driver with first order high pass filter to protect it from harmful bass energy, 12 oz ceramic magnet
- Frame - 20-gauge stamped steel with zinc-plated finish
- Mounting Bolt Circle - 7.625" diameter
- Transformer - 25V/70V with taps at .25, .5, 1, 2, 5W
- Assembly Frequency Response - 57 Hz-13.5 kHz (±6dB) and 44 Hz-20 kHz (±8.4dB)
- Assembly Mounting Depth - 3.20"
- Assembly Dispersion Angle - 80 degrees conical
- Assembly Average Sensitivity - 97.4 dB
General Information
Name: Lowell CT830A‑T72 8" Coaxial Speaker with 25V/70V Transformer, 20W
Category: Lowell Manufacturing, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 811859032568
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number YL-CT830AT72 Brand Name Lowell Manufacturing Manufacturer Part Number CT830A-T72
