Superior Essex P4024K1B1 Fiber Optic Cable, 24-SMA1 OFNP LT MA MU
P4024K1B1
|UY-P4024K1B1
Shop All Superior Essex
Superior Essex P4024K1B1 Fiber Optic Cable, 24-SMA1 OFNP LT MA MU
P4024K1B1 | UY-P4024K1B1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

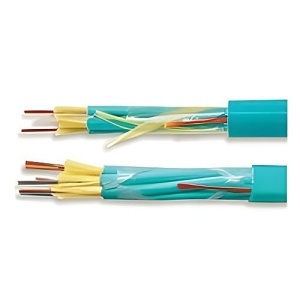

The 3mm Microarray Breakout cable from Superior Essex is designed for high performance in a small package. The premises loose tube design consists of 12-fiber 3 mm microarray interconnect cable subunits, each of which contain twelve 250 micron fibers. The aramid yarns inside the subunit allow the subunit to be crimped directly onto an MTP/MPO connector. The 3mm subunits are stranded around a central strength element that is both flexible and robust enough to pass backbone installation requirement s. The stranded subunits are held to the strength element core by binder yarns and/or tapes ensuring excellent temperature performance. Finally, a RoHS-compliant flexible jacket protects the core from the rigors of installation while providing riser or plenum fire protection. The cable is available with TeraFlex single-mode, and laser-optimized 50/125 micron 10G/150 (OM2 ), 10G/300 (OM3) and 10G/550 (OM4) multimode fiber types.
Specifications
ADI Part Number UY-P4024K1B1 Brand Name Superior Essex Manufacturer Part Number P4024K1B1
Fiber Category OS2 Fiber Count 24 Fiber Optic Mode Single-mode
