Superior Essex F360-012U13-E991 Fiber Optic Cable

F360-012U13-E991

|

UY-F360012U1

Sign In for Dealer Pricing

New to ADI?Become a Customer

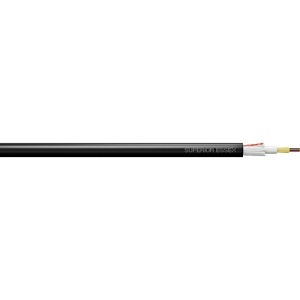

Image of UY-F360012U1
Shop All Superior Essex

Superior Essex F360-012U13-E991 Fiber Optic Cable

F360-012U13-E991 | UY-F360012U1

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

EnduraLite Dry Block, Sunlight Resistant Indoor/Outdoor Loose Tube plenum rated cable lines offer the system designer the smallest form factor in a premises indoor/outdoor optical fiber cable. The cables can be installed in open spaces, trays, conduits, inner-ducts, steam tunnels and building plenum locations. The cables incorporate the latest in dry water blocking technology which eliminates the need to clean off the traditional gel-based water-blocking compounds. In the single unit design, a 3 mm central tube contains 2–to 12, 250 μm fibers and water-blocking aramid yarns. In the multi unit design, the water-blocked 3 mm subunits are stranded around a central strength element. The tube or core is surrounded by additional water blocking glass strength elements and a water-resistant outer jacket, comprised of a rugged UL Listed, sunlight resistant, black polymer that allows for the cable to be exposed to long-term direct sunlight without the concern of material degradation. All fiber types are available, including 50/125 μm, 62.5/125 μm and single mode.

Specifications

Documents and Resources

Download All Documents
