Superior Essex 09-097-05 Multipair Cable

Brand: Superior Essex
ADI #:UY-0909705 Model #: 09-097-05  Name: Superior Essex 09-097-05 Multipair Cable
  • Multipair cable for aerial applications
  • Filled cable design for enhanced protection
  • Figure 8 cross-section for stability

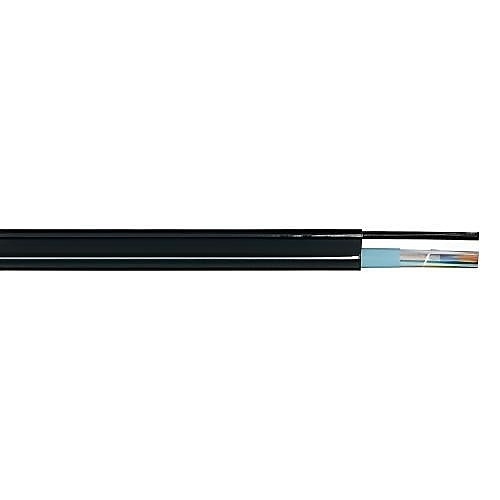

Image of UY-0909705

Product Overview

SEALPIC-FSF-84 Cables are suited for aerial applications where a filled cable design is preferred. The core and support member (messenger) lay parallel to each other forming a cross-sectional "figure 8." The support messenger is an integral part of the cable sheath, yet readily available for gripping, pulling and tensioning.

General Information

Name : Superior Essex 09-097-05 Multipair Cable , Superior Essex
Category : Multipair Cables
UPC Code :

Specifications

General Information

ADI Part Number : UY-0909705
Brand Name : Superior Essex
Manufacturer Part Number : 09-097-05
Product Name : 09-097-05 Copper Exchange Cable
Product Type : Connector Cable

Technical Information

American Wire Gauge : 24AWG
Material : Annealed Copper - Conductor
Number of Pairs : 25
Shielding : Yes
Solid or Stranded : Solid

Physical Characteristics

Cable Length : 5000'
Color : Black
Package Type : Reel
