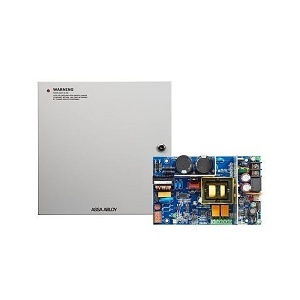

Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch

AQD4-8C2 | SN-AQD48C2

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The Securitron AQD4 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 4 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Main Features

All combinations of AQ power supplies and distribution boards are UL listed
Dual voltage 12 or 24 VDC field selectable continuous output
Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
Tolerates brownout or overvoltage input ± 15% of nominal voltage
Thermal shutdown protection with auto restart
Circuit breaker protects against overcurrent and reverse battery faults
Dedicated battery charging circuit prevents overvoltage on locking devices
Low battery cutoff at 9V at 12V or 18V at 24V
Available with a single relay fire trigger or individually triggered relayed outputs

General Information

Name: Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch

Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies

UPC Code: 784607047711

Country of Origin: United States. Country of origin is subject to change.

Specifications

: ADI Part Number SN-AQD48C2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number AQD4-8C2 Product Model AQD4-8C2 Product Name Securitron AQD4-8C2 4 Amp, Dual Voltage Power Supply with Enclosure, 8 Outputs, 2 Amp PTC Polyswitch Product Series AQD4 Product Type Power Supply

: Input Voltage 115V AC, 230V AC Output Current 2A

: Amperage 2A

: Limited Warranty Lifetime

: Country of Origin US Environmental Certification UL Environmentally Friendly Yes

Documents and Resources

Download All Documents

Product Data Sheet

Installation Instructions

Manufacturer Brochure
