Lantronix F-SM-MM-02-SA Multi SM Fiber 155M Bw/Saps

Brand: Lantronix
ADI #:P6-FSMMM02SA Model #: F-SM-MM-02-SA  Name: Lantronix F-SM-MM-02-SA Multi SM Fiber 155M Bw/Saps
  • Link Pass Through
  • Automatic Link Restoration

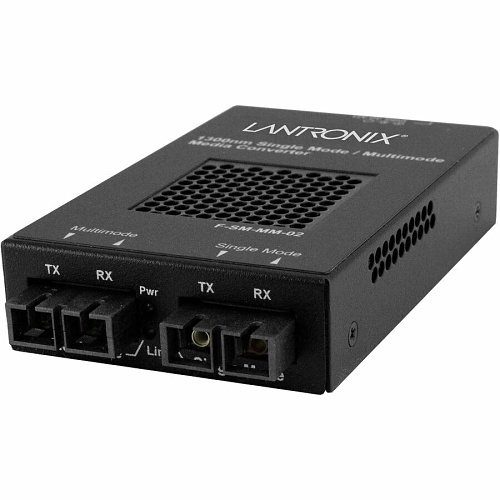

Image of P6-FSMMM02SA

Product Overview

The F-SM-MM-02 fiber to fiber stand-alone media converter extends distance up to 20 km with network protocols that use 1300nm wavelength for fiber optic transmission. In fact, distances can be extended in any networking protocol between 100 Mbps and 155 Mbps.

General Information

Name : Lantronix F-SM-MM-02-SA Multi SM Fiber 155M Bw/Saps , Lantronix
Category : Media Converters
UPC Code : 648177001446

Specifications

General Information

ADI Part Number : P6-FSMMM02SA
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : FSMMM02SA
Packaged Quantity : 2
Product Model : F-SM-MM-02
Product Name : Stand-alone Fiber to Fiber Media Converter
Product Series : F-SM-MM-02
Product Type : Transceiver/Media Converter
Weight : 2 lb

Technical Information

Media Type Supported : Optical Fiber
Power Consumption : 3.1W

Interfaces/Ports

Number of Ports : 2
Number of SC Ports : 2

Physical Characteristics

Depth : 4.7"
Height : 1"
Width : 3"

Power Description

Power Source : AC, DC

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : Stand-alone Fiber to Fiber Media Converter Power Supply (South Africa)
