Audio-Technica ATUC-50CU Wired Control Unit, Rack-Mount, 24-bit / 48 kHz Digital Signal Processing, 19"

ATUC-50CU

ME-ATUC50CU

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Shop All Audio-Technica

Audio-Technica ATUC-50CU Wired Control Unit, Rack-Mount, 24-bit / 48 kHz Digital Signal Processing, 19"

ATUC-50CU | ME-ATUC50CU

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

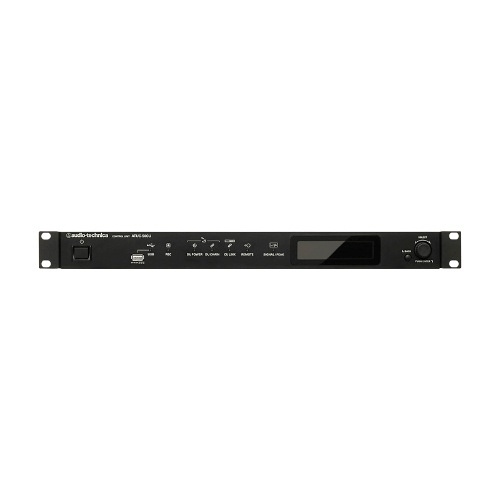

The 19" rack-mountable ATUC-50CU control unit drives wired discussion systems only. It provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. The ATUC-50CU can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. The control unit offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings.

Main Features

Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor
Easy plug-and-play operation for wired discussion systems
Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units and ATUC-50IU integration units (depending on the cable lengths, ATLK-EXT165 link extender may be required)
Three ATUC-50CUs can be linked via CAT5e (or better) cable, providing a wired system with up to 300 DU/IUs (ATLK-EXT165 link extenders required to achieve maximum number of DU/IUs)
Systems can be configured in either daisy chain or ring topology
Three selectable operation modes (Free Talk, Request to Talk, and Full Remote), plus various override settings
Built-in WAV and MP3 recorder lets you record to a USB mass storage device
Four configurable balanced matrix output plus one unbalanced output that outputs the same audio as Output 1
Two Mic/Line inputs, two AUX inputs, and two return inputs
LED indicators on front panel allow for easy monitoring of critical system functions

General Information

Name: Audio-Technica ATUC-50CU Wired Control Unit, Rack-Mount, 24-bit / 48 kHz Digital Signal Processing, 19"

Category: Audio-Technica, Pro AV, Commercial Audio, Pro Audio Mixers, Pro Accessories & Mounts

UPC Code:

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number ME-ATUC50CU Brand Name Audio-Technica Manufacturer Part Number ATUC-50CU Product Line ATUC-50 Product Type Discussion Systems

Documents and Resources

Download All Documents

User Manual
