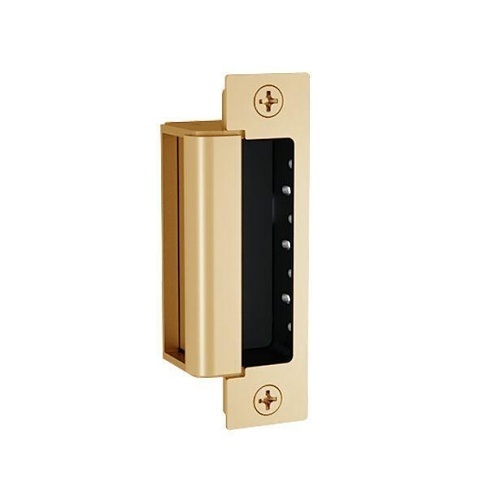

HES 1600-CS-612-LM 1600 Series Complete Electric Strike with 1LB and 1DB Faceplate Kits, Lock Monitor, Satin Bronze
1600-CS
|HE-16S2L
HES 1600-CS-612-LM 1600 Series Complete Electric Strike with 1LB and 1DB Faceplate Kits, Lock Monitor, Satin Bronze
1600-CS | HE-16S2L
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The 1600 Series electric strike accommodates up to a 1" deadbolt with enhanced vertical cavity spacing.
The 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in eight finishes.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
General Information
Specifications
ADI Part Number HE-16S2L Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 1600-CS-612-LM Product Model 1600-CS Product Name 1600 Electric Strike Product Series 1600 Product Type Electric Strike
Application/Usage Door, Door Lock, Fire Door, Industrial, Outdoor Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Cylindrical, Mortise Door Handling Non Handed Holding Strength 1500 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Color Bronze Depth 1.625" Height 4.87" Width 1.75"
Input Current 120mA, 240mA Input Voltage 12V DC, 24V DC Power Source DC
Finishing Satin Length 0.5"
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin US Features PoE friendly, Static Strength Indoor/Outdoor Outdoor Package Contents - 1600 Electric Strike
- 1LB Faceplate Kit for Latchbolts
- 1DB Faceplate Kit for Deadbolts
