HES by ASSA ABLOY

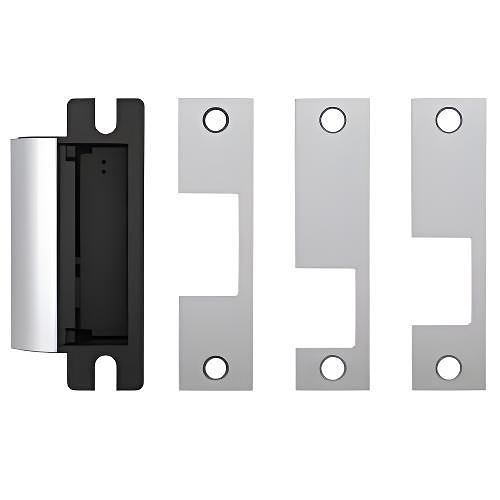

HES 10620442 Electric Strike
10620442
|HE-100610442
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The HES 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs. (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Non-handed
- Accommodates up to 1" [25.4mm] deadbolt
- Plug-in connector
- Full keeper shims for horizontal adjustment
General Information
Name: HES 10620442 Electric Strike
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 0740090041438
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number HE-100610442 Brand Name HES by ASSA ABLOY Manufacturer Part Number 10620442 Product Name HES 1006Clb-12/24D-630 10620443 Door Electric Strike, 12/24 Vdc, 0.45/0.25A, 3070 Lb Static Load, Satin Stainless Steel, With Faceplate, For Cylindrical And Mortise Lockset Product Series 1006 Product Type Electric Strike
Compatible Door Lock Type Cylindrical, Mortise Holding Strength 3000 lb Material Stainless Steel Security Configuration Fail Safe
Color Silver Depth 2.06" Height 4.87" Width 1.68"
Input Voltage 12V DC, 24V DC
Limited Warranty 5-Year
Certifications & Standards UL Listed Country of Origin US Features Adjustable Keeper, Latchbolt Monitor
