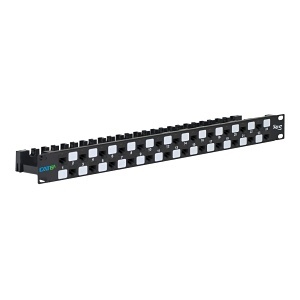

ICC ICMPP246AU CAT6a 24-Port Keystone 1U Patch Panel with CAT6a Keystone Jacks, 19" Rackmount Housing and Cable Support Bar, Staggered Ports to Reduce ANEXT, UL Listed PoE++ Compliant
ICMPP246AU
|H2-MPP246AU
Shop all ICC
ICC ICMPP246AU CAT6a 24-Port Keystone 1U Patch Panel with CAT6a Keystone Jacks, 19" Rackmount Housing and Cable Support Bar, Staggered Ports to Reduce ANEXT, UL Listed PoE++ Compliant
ICMPP246AU | H2-MPP246AU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
ICC’s 24-Port CAT6A Keystone Patch Panel is kitted with CAT6A unshielded keystone jacks to support high-performance 10G Ethernet applications in a compact 1U rackmount design. The staggered port layout is engineered to reduce alien crosstalk (ANEXT) and accommodate slim-profile connectors for improved signal integrity in high-density installations. Each jack supports PoE++ up to 100 watts and features 50 microinches of gold plating over 100 microinches of nickel, along with phosphor bronze IDC pins designed for 4-pair termination and over 100 re-terminations. A rear cable management bar with integrated tabs helps maintain bend radius, signal performance, and an organized layout. Constructed from durable cold-rolled steel, this panel fits standard 19” racks and is UL Listed, TAA compliant, RoHS compliant, and ETL Verified to TIA 568.2-D for 10GBASE-T performance.
Main Features
- Staggered Port Design for Reduced Anext: Offsets keystone jacks in a staggered pattern to minimize alien crosstalk (ANEXT) and improve signal integrity in high-density installations. Provides extra spacing to accommodate slim-profile keystone connectors, ensuring reliable performance for data-intensive networks
- PoE++ Rated for High-Power Devices: Includes CAT6A keystone jacks with shielded wire caps to protect terminations from electromagnetic interference (EMI). Supports up to 100 watts of Power over Ethernet (PoE++), making it ideal for powering pan-tilt-zoom cameras, Wi-Fi access points, and other networked devices. Features 50 micro-inch gold-plated contacts over 100 micro-inches of nickel for secure and reliable connections
- Fast Termination & Reliable Durability: The included keystone jacks feature 4-pair termination using ICC’s JackEasy Termination Tool (SKU: ICACSPDTEH), sold separately, for quick and efficient setup. Designed with phosphor bronze alloy IDC pins for 100+ re-terminations and tested for 750+ plug-to-jack cycles to ensure long-lasting performance
- Rear Cable Management with Flush Mount Design: Keystone jacks sit flush with the front face of the panel, reducing cable snags and maintaining a clean, professional appearance. The rear cable management bar includes integrated tabs for secure and strain-free cable routing, keeping installations organized and minimizing signal degradation.
- EIA-310-E Compliant, TAA Compliant & UL Listed: Designed to fit all standard 19-inch racks and cabinets with pre-drilled holes for universal mounting. Includes #12-24 x 5/8” pilot point screws for easy installation. Meets U.S. government regulations, including TAA and Section 889 certification, and is UL Listed (E125268), RoHS compliant, and ETL Verified to TIA 568.2-D standards for 10-Gigabit Ethernet (10GBASE-T) performance
General Information
Name: ICC ICMPP246AU CAT6a 24-Port Keystone 1U Patch Panel with CAT6a Keystone Jacks, 19" Rackmount Housing and Cable Support Bar, Staggered Ports to Reduce ANEXT, UL Listed PoE++ Compliant
Category: ICC, Data Comm & Networking, Patch Panels, Network Patch Panels
UPC Code: 633758038515
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number H2-MPP246AU Brand Name ICC Manufacturer ICC Manufacturer Part Number ICMPP246AU Packaged Quantity 1 Product Model ICMPP246AU Product Name CAT6A UTP Patch Panel with 24 Ports and 1 RMS Product Type Network Patch Panel
Cable Type Category 6a Material CRS, Gold, Phosphor Bronze, Plastic
UL Listed Yes
Number of Network (RJ-45) Ports 24 Number of Ports 24
Color Black Compatible Rack Unit 1U Compatible Rack Width 19" Form Factor Rack Mount Height 0.5" Weight 2.32lb Width 1.75"
Length 19" Mount Type Rack Mount
Limited Warranty 3-Year
Country of Origin US Package Contents - CAT6A UTP Patch Panel with 24 Ports and 1 RMS
- 1 x Cable management bar
- 24 x Cable ties
- 4 x 12-24 x 5/8 rack screws
