Product Overview

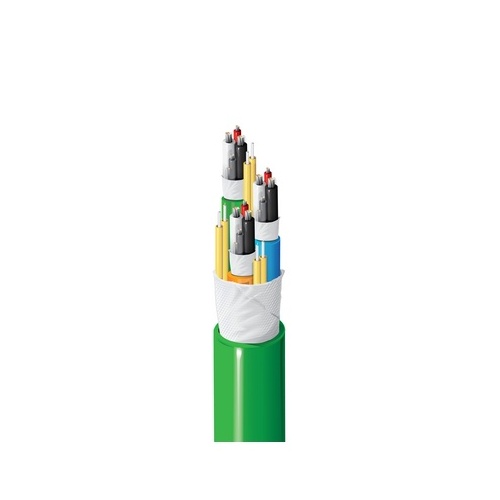

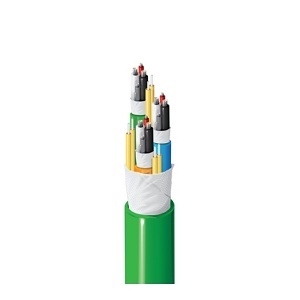

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 TC Conductor (19x30) 18 AWG and 6 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum
Main Features
- Offers a reliable network connectivity
- Features fiber optic cable type to better acco mmodate your precise power supply requirements with maximum charging productivity
- Stranded feature for your convenience and ease of usage
- Fully compatible with network devices
General Information
Name: Belden 7824P 0051000 3-Channel SMPTE Stadium Cable, Single Mode Fiber, 6/18 AWG, 6/24 AWG, Plenum, 1000' (304.8m) Green, Dark
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825189992
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-7824P0051 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 7824P 0051000 Packaged Quantity 305 Product Name Fiber Optic Network Cable Product Type Network Cable
American Wire Gauge 18AWG, 24AWG Cable Rating Plenum Cable Type Composite Conductor Count 12 Conductor Material Tinned Copper Core/Cladding Diameter 900 µm Device Supported Camera, Network Device Fiber Count 6 Fiber Optic Mode Single-mode Jacket Material PVDF Jacket Type Plenum Material PVC Number of Conductors 12 Solid or Stranded Stranded
Operating Temperature (T-T) 0-70°C Storage Temperature (T-T) 32-158°F
Cable Length 1000' Color Green Insulation Material FEP Package Type Reel
Length 1000'
Limited Warranty 10-Year
Country of Origin US Environmental Certification California Proposition 65, China RoHS 2, ELV, EU WEEE, RoHS 2 Environmentally Friendly Yes Features Bendable, Stranded Indoor/Outdoor Indoor
