Product Overview

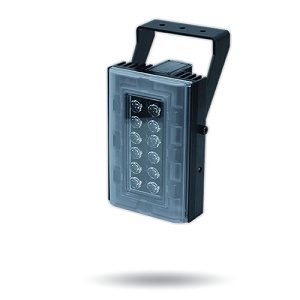

The DW-ILHYBIP850 and DW-ILHYBIP940 are IP-enabled infrared (IR) and white light (WL) LED outdoor illuminator. The hybrid illuminator incorporates the latest surface mount Dual-Core LEDs, combined with enhanced optical output and outstanding reliability to provide users with a smart concealed and deterrent lighting solution for a wide range of applications.
Main Features
- Dual Lighting Modes Combines 850nm infrared and ultra-white LED lighting in one device for both covert surveillance and visible deterrence.
- Smart Motion Activation Automatically triggers illumination based on motion, enhancing security response and video clarity.
- Flexible Beam Control Includes interchangeable lens packs to customize beam angles and align with camera views.
- Remote Configuration Adjust photocell sensitivity and light levels remotely via built-in web interface for easy setup and tuning.
- CleanView™ Coating Hydrophobic front coating repels water, dust, and grease to maintain clear illumination in harsh environments.
- Long-Range Coverage Delivers up to 614ft of IR and 374ft of white light coverage, ideal for large perimeter protection.
- DW Spectrum Integration Seamlessly integrates with DW Spectrum for centralized control and event-driven automation.
- Durable Build IP66-rated for water and dust resistance, and IK09-rated for impact protection—built to withstand tough conditions.
- High-Efficiency LEDs Powered by Dual-Core™ surface-mount LEDs with advanced control circuitry for reliable, energy-efficient performance.
- Compliance Ready Fully NDAA/TAA compliant, making it suitable for government and regulated installations.
General Information
Name: Digital Watchdog DW-ILHYBIP850 NightWatch IR and White Light LED IP-Enabled Hybrid Illuminator
Category: Digital Watchdog, Video Surveillance, Video Accessories, Illuminators, ADI Pro Rewards
UPC Code: 812226033812
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 6K-ILHYBIP85 Brand Name Digital Watchdog Manufacturer Digital Watchdog Manufacturer Part Number DW-ILHYBIP850 Product Line SiteWatch Product Model DW-ILHYBIP850 Product Name NightWatch IR/White Light Illuminator Product Series NightWatch Product Type IR/White Light Illuminator
Application/Usage Outdoor Light Output 1800 lm Maximum Detection Range 98.5' Video Formats H.264, MJPEG
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
Operating Temperature (T-T) -58-122°F
Color White Depth 3.1" Dimensions 4.33" x 6.34" x 3.07" Durability Impact Resistant Height 4.3" Weight 3lb Width 6.3"
Limited Warranty 2-Year
Certifications CE, FCC, IEC/EN 60529, IEC/EN 62262 Country of Origin US Features Surface Mount, Wall Mountable Impact Protection Rating IK09
