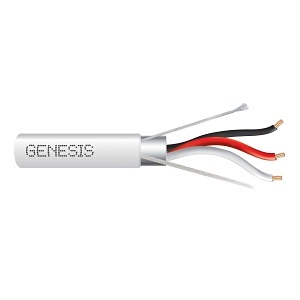

Genesis 32271112 22/3 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
32271112
|WG-32271112
Shop all Genesis
Genesis 32271112 22/3 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
32271112 | WG-32271112
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Foil shield over all conductors
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32271112 22/3 Stranded Shielded Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Natural
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Shielded Cables
UPC Code: 619172056144
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-32271112 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32271112 Packaged Quantity 1 Product Model 32271112 Product Name 32271112 Control Cable Product Type Access & Security Cable
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Device Supported Burglar Alarm, Intercom, Speaker Jacket Material LS PVC Jacket Type Riser Material Bare Copper Number of Conductors 3 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
TAA Compliant Yes
Cable Length 1000' Color Natural Insulation Material LS-PVC Package Type Pull Box
Limited Warranty 3-Year
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
