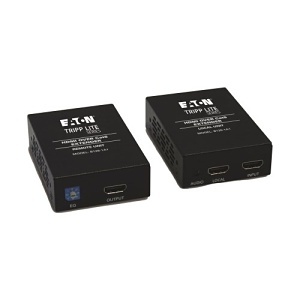

Eaton Tripp Lite B126-1A1 HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA
B126-1A1
|TC-B1261A1
Eaton Tripp Lite B126-1A1 HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA
B126-1A1 | TC-B1261A1
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Main Features
- Extends HDMI signals up to 150' (45 m)
- Supports 1080p video and 7.1-Channel surround sound
- Plug-and-play setup with no software required
- Includes mounting hardware for easy installation
- TAA-Compliant for federal procurement contracts
- Connects up to five HDMI displays with repeaters
- Compatible with CAT5e/6 cabling for connectivity
- Ideal for boardrooms, conference rooms, and more
General Information
Specifications
ADI Part Number TC-B1261A1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B126-1A1 Product Model B126-1A1 Product Name B126-1A1 Video Extender/Console Product Type Video Extender Transmitter/Receiver
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 150' Media Type Supported Twisted Pair Number of Input Devices Supported 2 Number of Output Devices Supported 2
TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Network (RJ-45) Yes Number of HDMI Inputs 1 Number of HDMI Outputs 2 Number of Network (RJ-45) Ports 2
Color Black Form Factor Rack Mount, Wall Mount
Mount Type Rack Mount, Wall Mount
Limited Warranty 1-Year
Country of Origin TW Environmentally Friendly Yes
