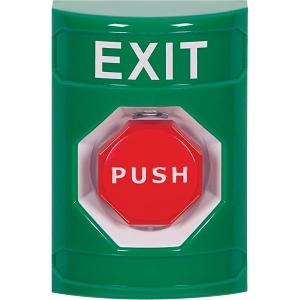

STI SS2105XT-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, EXIT Label, Green
SS2105XT-EN
|SF-2105XTEN
Shop all Safety Technology International
STI SS2105XT-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, EXIT Label, Green
SS2105XT-EN | SF-2105XTEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This Stopper® Station, momentary push button switch is housed in a curved shell with EXIT messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). The push button includes two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Momentary push button activation
- LED illuminates green, red or white
- Raised EXIT label
- Two (2) Form “C” contacts rated 10 amp @125/250 VAC, 1/2 HP 30 VDC, 6A
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2105XT-EN Stopper Station Button, No Cover, Momentary Illuminated Bar, EXIT Label, Green
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Door Release Buttons
UPC Code: 662950500681
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2105XTEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2105XT-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Print/Message Exit
ADA Compliant Yes
