Product Overview
(8) 10/100/1000Base-T Ports
This (8) 10/100/1000Base-T port switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks. This switch is a store-and-forward device that offers low latency for high speed networking. It is designed for the core of the network backbone computing environment to solve traffic block problems at SME (small, medium enterprise) businesses.
Main Features
- Small Form Factor
- Internal Power Supply
- Auto-Negotiation
- Auto-MDI/MDIX
- Supports full and half-duplex for 10/100Mbps and full-duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Support Jumbo Frame up to 9K bytes
- Supports IEEE 802.3az energy efficient Ethernet
General Information

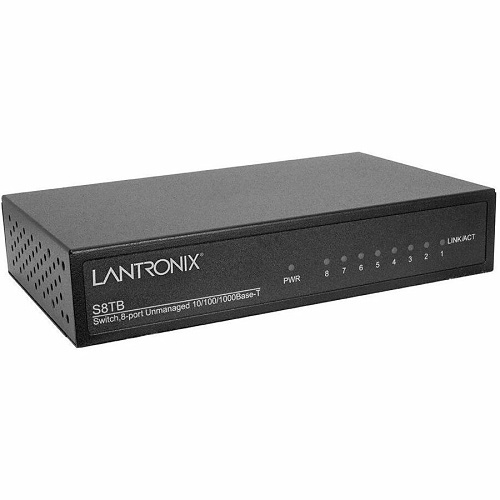

Name: Lantronix S8TB-JP Unmanaged Switch 8-Port Gigabit Ethernet
Category: Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 783384247888
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number P6-S8TBJP Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S8TBJP Product Name S8TB Ethernet Switch Product Series S8TB Product Type Ethernet Switch
Media Type Supported Twisted Pair Power Consumption 3.50W
Shared SFP Slot No
Network (RJ-45) Yes Total Number of Network Ports 8
Manageable No
Network Technology 10/100/1000Base-TX
Ethernet Technology 10 Gigabit Ethernet Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Depth 6.3" Height 1.3" Weight 1.35lb Width 3.9"
Input Voltage 120V AC, 230V AC Power Source Power Supply
Limited Warranty Lifetime
Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - S8TB Ethernet Switch
- Power Cord Japan
