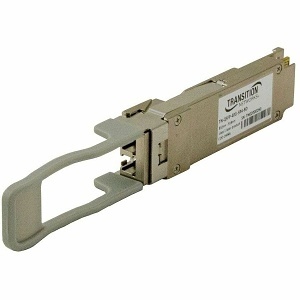

Lantronix TN-QSFP-40G-SR-BD SFP Module, QSFP+, Cisco Compatible, 40GBASE-SR-BD, 150 /100m, Multimode LC
TN-QSFP-40G-SR-BD
|P6-QSFPGSRBD
Shop all Lantronix
Lantronix TN-QSFP-40G-SR-BD SFP Module, QSFP+, Cisco Compatible, 40GBASE-SR-BD, 150 /100m, Multimode LC
TN-QSFP-40G-SR-BD | P6-QSFPGSRBD
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Lantronix TN-QSFP-40G series 40G QSFP+ optical transceivers are designed to install in any QSFP+ port allowing for 40GBase-X interfaces to the network through the QSFP+ connector. The TN-QSFP-40G transceivers are Cisco Compliant and are designed for bi-directional serial-optical data communication such as 40G Ethernet
Applications include: 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.
Main Features
- High capacity: up to 44.4 Gbps per module
- Compliant with SFF 8436 QSFP+ MSA
- Single +3.3 V Power Supply
- RoHS Compliant
- Digital Diagnostic Monitoring
- Low Power Dissipation : SR4 <1.5 Watts, all other modules <3.5w
- 40GBase-SR4: 4 lanes, up to 11.1Gbps per lane, Standard MPO connector
- 40GBase-LR4 & 40GBase-LR4-3: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
- 40GBase-SR-BD: two transmit/receive channels, 20Gbps each channel, 850 - 900nm wavelength range, Duplex LC connector
- 40GBase-IR4: 4 wavelength CWDM Mux/Demux design, up to 11.1Gbps per wavelength, Duplex LC connector
General Information
Name: Lantronix TN-QSFP-40G-SR-BD SFP Module, QSFP+, Cisco Compatible, 40GBASE-SR-BD, 150 /100m, Multimode LC
Category: Lantronix, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 648177040506
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-QSFPGSRBD Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TNQSFP40GSRBD Maximum Distance 492.13' Product Model TN-QSFP-40G-SR-BD Product Name TN-QSFP-40G Cisco QSFP+ Module Product Series TN-QSFP-40G Product Type QSFP+
Fiber Optic Mode Multimode Media Type Supported Optical Fiber
Number of Ports 1
Network Technology 40GBase-SR-BD
Ethernet Technology 40 Gigabit Ethernet
Depth 2.8" Form Factor Small Height 0.3" Width 0.7"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty 5-Year
Compatibility MSA Compliant Country of Origin CN Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
