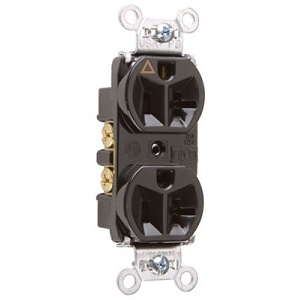

Pass & Seymour IG5362-BK 20A 125V Commercial Isolated Ground Duplex Receptacle, Black
IG5362-BK
|H4-IG5362BK
Shop all Pass & Seymour by Legrand
Pass & Seymour IG5362-BK 20A 125V Commercial Isolated Ground Duplex Receptacle, Black
IG5362-BK | H4-IG5362BK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour by Legrand On-Q IG5362-BK RECEP DUP 20A 125V COMM ISOL is an electrical receptacle designed for high identification and safety in circuit delineation. It features IG symbol and Isolated Ground markings, and face color coding by voltage to facilitate proper device mating. Constructed with a high-impact resistant nylon face and a corrosion-resistant plated steel strap, it provides durability in demanding environments. Installation is streamlined with a patented external screw-pressure-plate back wire clamp on the ground terminal, plastic barrier isolating the grounding terminal from the mounting strap and metal boxes, and an auto-ground clip for assured grounding. It operates safely within a maximum continuous temperature of 60°C and withstands a maximum 30°C temperature rise after rigorous overload testing.
Main Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Face color coding by voltage facilitates locating and mating of proper devices
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30�C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60�C, minimum -40�C without impact
General Information
Name: Pass & Seymour IG5362-BK 20A 125V Commercial Isolated Ground Duplex Receptacle, Black
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007242904
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-IG5362BK Brand Name Pass & Seymour by Legrand Manufacturer Part Number IG5362-BK Product Name 20A 125V Heavy Duty Spec-Grade Isolated Ground Duplex Receptacle, Back and Side Wire, Black Product Type Duplex Receptacle
Color Black Depth 0.922" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Country of Origin MX Environmental Certification UL94 V2
