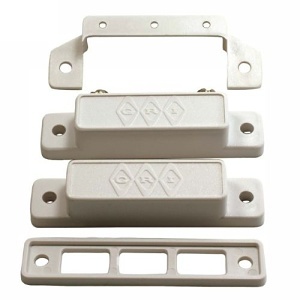

GRI 29AWG Surface Mount Magnetic Reed Switch Set, 1-1/2" Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Gray
29AWG
|GI-29AWGG
GRI 29AWG Surface Mount Magnetic Reed Switch Set, 1-1/2" Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Gray
29AWG | GI-29AWGG
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
- The GRI 29 AWG-G is a gray magnetic reed switch designed for surface mounting.
- The unit is equipped with a closed loop system, top terminals covers
- The switch offers a wide gap of up to 1-1/2 and 3/4 on steel
- 24" jacketed cable on PA Series
- Longer leads upon request on PA series
- Side mounted screw terminals on 29 series
- Standard gap up to 1", 5/8" on steel
- Wide gap up to 1 1/2", 3/4" on steel
- Extra wide gap up to 2", 1" on steel
- Spacers, covers and screws Included
General Information
Name: GRI 29AWG Surface Mount Magnetic Reed Switch Set, 1-1/2" Wide Gap, 10W, 160VDC, 0.40A, Closed Loop, N/O, and Side Mounted Screw Terminals, Gray
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625006717
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-29AWGG Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 29AWG-G Packaged Quantity 10 Product Model 29AWG Product Name 29AWG Magnetic Contact Product Series 29 Product Type Magnetic Contact
Connectivity Technology Wired Material Steel Standard Gap 1.5"
Color Gray
Power Source DC
Contact Type N.O. Installation Type Commercial Mount Type Surface Mount
Limited Warranty Lifetime Warranty
Additional Information - Surface mount magnetic contacts
- Screw down flanges
- Hermetically sealed
- Plated contacts resist sticking or freezing
- Close loop
Country of Origin US Features 24" jacketed cable on PA Series, Close loop, Concealed terminals on 28 Series, Extra wide gap up to 2", 1" on steel, Hermetically sealed, Lifetime warranty against workmanship, material and factory defects, Longer leads upon request on PA series, Plated contacts resist sticking or freezing, Screw down flanges, Side mounted screw terminals on 29 series, Spacers, covers and screws Included, Standard gap up to 1", 5/8" on steel, Surface mount magnetic contacts, UL and ULC approved, Wide gap up to 1 1/2", 3/4" on steel Package Contents - 29AWG Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
