Product Overview
The SR-800 Cinema Surround Loudspeaker is a two-way design that features an 8" (203mm) low-frequency transducer with a 1" dome tweeter. The 125 watt continuous power rating and sophisticated crossover circuitry provides absolute reliability. The SR-800 is designed for safe and secure mounting. The cabinet is constructed of 12mm MDF with internal bracing for superior structural integrity. The rear panel of the cabinet is fitted with four threaded insert mounting points that accommodate the standard bolt pattern for most third- party bracket manufacturers. Included pre- installed speaker side hardware allows fast single-installer wall mounting, and brackets support down-angles of either 15 deg (QM-SW, ordered separately) or 23 deg (QM-BW, ordered separately). A traditional U-bracket "yoke" style bracket (YM-300) is also available. The compact black enclosure with black grille blends into any theatre decor.
Main Features
- High Performance for all Cinema applications
- 8" (203 mm) woofer
- 1" (25 mm) dome tweeter
- Pre-installed speaker-side QM mounting hardware
- Accepts YM-300 yoke bracket
General Information

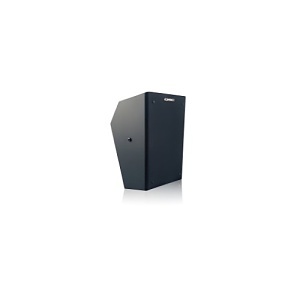

Name: QSC SR-800 Cinema Surround Loudspeaker, 8" 2-Way
Category: QSC, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number QB-SR800 Brand Name QSC Manufacturer QSC Audio Manufacturer Part Number SR-800 Product Line Q-SYS Product Model SR-800 Product Name SR-800 Cinema Surround Loudspeaker Product Series SR Product Type Speaker
Crossover Type 2-way Impedance 8 ohms Sensitivity 90dB
Maximum Frequency Response 20 kHz Minimum Frequency Response 60Hz
Color Black Depth 9" Height 14.4" Weight 14.3lb Width 11.7"
Country of Origin CN Features 1" (25 mm) dome tweeter, 8" (203 mm) woofer, Accepts YM-300 yoke bracket, High Performance for all Cinema applications, Pre-installed speaker-side QM mounting hardware
