Genesis 31991001 22/6 Stranded Shielded + 22/4 Stranded + 22/4 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, White
31991001
|WG-31991001
Shop All Genesis
Genesis 31991001 22/6 Stranded Shielded + 22/4 Stranded + 22/4 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, White
31991001 | WG-31991001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

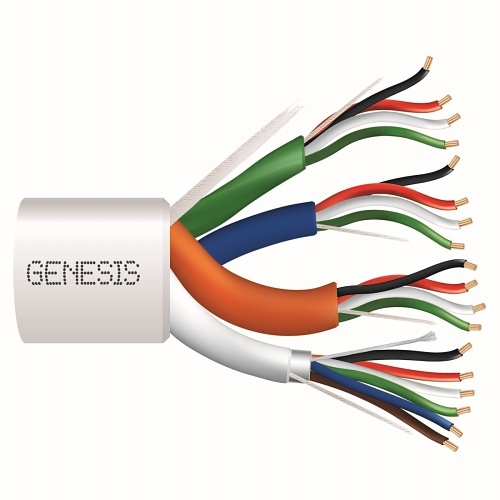

Genesis Access Control Cables simplify and expedite wiring of access points by combining individual lock power, door contact, card reader, and request-to-exit cables into a single, easy-to-pull bundle.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation
- Card reader component shielded
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 31991001 22/6 Stranded Shielded + 22/4 Stranded + 22/4 Stranded + 18/4 Stranded Composite Access Control Cable, Plenum, CMP, FT6, 1000' (304.8 m) Reel, White
Category: Genesis, Wire & Cable, Security & Access Control Cables, Composite Cables
UPC Code: 886618248580
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number WG-31991001 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 31991001 Package Type Reel/Spool Product Model 31991001 Product Name Bare Wire Control Cable Product Type Security & Control Cables
American Wire Gauge 22AWG Armored No Cable Rating Plenum Conductor Material Bare Copper Jacket Type Standard Number of Conductors 18 Shielding Yes Solid or Stranded Stranded
TAA Compliant Yes
Cable Length 1000.00' Color White Insulation Material LS-PVC Jacket Material LS-PVC
Limited Warranty 1-Year
Environmental Certification RoHS
