Lantronix M/GE-PSW-SX-01-SA Mini 10/100/1000BT-1000BX Switch, 3.3V

Brand: Lantronix
ADI #:P6-MGEPWXA Model #: M/GE-PSW-SX-01-SA  Name: Lantronix M/GE-PSW-SX-01-SA Mini 10/100/1000BT-1000BX Switch, 3.3V
  • Unit & Port LEDs allow for quick status information
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber

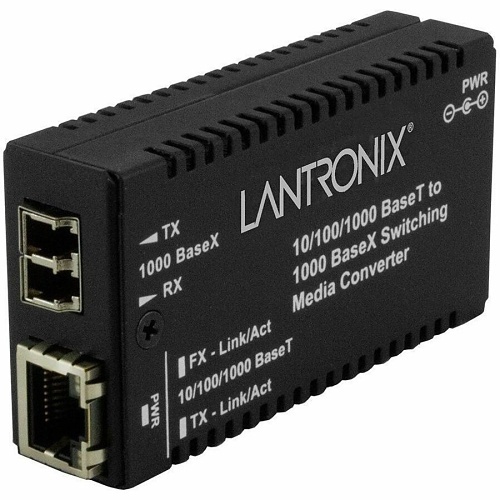

Image of P6-MGEPWXA

Product Overview

Mini Gigabit Ethernet Media Converter

10/100/1000Base-T to 1000Base-SX/LX

The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.

General Information

Name : Lantronix M/GE-PSW-SX-01-SA Mini 10/100/1000BT-1000BX Switch, 3.3V , Lantronix
Category : Media Converters
UPC Code : 648177048809

Specifications

General Information

ADI Part Number : P6-MGEPWXA
Brand Name : Lantronix
Manufacturer : Lantronix, Inc
Manufacturer Part Number : MGEPSWSX01SA
Packaged Quantity : 1
Product Model : M/GE-PSW-SX-01
Product Name : M/GE-PSW-SX-01 Transceiver/Media Converter
Product Series : M/GE-PSW
Product Type : Transceiver/Media Converter
Weight : 2 lb

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 3.15W

Certifications

TAA Compliant : Yes

Interfaces/Ports

Network (RJ-45) : Yes
Number of Network (RJ-45) Ports : 1
Number of Ports : 2
Number of SC Ports : 1

Media & Performance

Network Technology : 10/100/1000Base-T, 1000Base-SX

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet

Physical Characteristics

Depth : 3.3"
Height : 0.9"
Width : 1.8"

Power Description

Input Voltage : 12V DC
Power Source : AC Adapter

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : REACH, RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : M/GE-PSW-SX-01 Transceiver/Media ConverterPower Supply - South Africa
