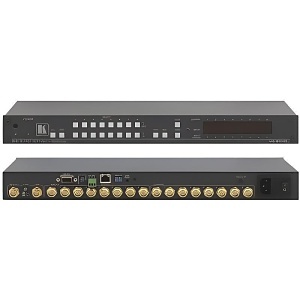

Kramer VS-88HDXL 8x8 3G HD-SDI Matrix Switcher, 110V
VS-88HDXL/110V
|KR-VS88HDXL1
Shop all Kramer Electronics
Kramer VS-88HDXL 8x8 3G HD-SDI Matrix Switcher, 110V
VS-88HDXL/110V | KR-VS88HDXL1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The VS-88HDxl is a high-performance matrix switcher for 3G HD-SDI and HD-SDI dual-link video signals. The unit can switch any or all inputs to any or all outputs. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
Main Features
- Max. Data rate 3 Gbps
- SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M) and dual-link HD-SDI (SMPTE 372M)
- Automatic equalization technology
- Looping analog sync input
- Selectable Sync signal termination
- Analog Sync Type; Bi-level, tri-level
- Take Button; Executes multiple switches all at once
- Stores multiple switches as presets to be recalled and executed when needed
- Front panel control lockout
- Worldwide Power Supply of 100-240V AC
General Information
Name: Kramer VS-88HDXL 8x8 3G HD-SDI Matrix Switcher, 110V
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro HDMI Switchers
UPC Code:
Country of Origin: Israel. Country of origin is subject to change.
Specifications
ADI Part Number KR-VS88HDXL1 Brand Name Kramer Electronics Manufacturer Kramer Electronics Manufacturer Part Number 21-70723010 Product Model 21-70723010 Product Name Kramer VS-88HDXL/110V 8x8 3G SD/HD-SDI Matrix Switcher Product Type Matrix Switcher
Input Voltage 110V
