Product Overview

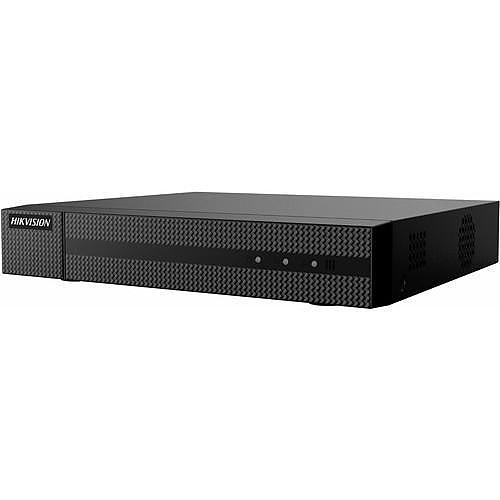

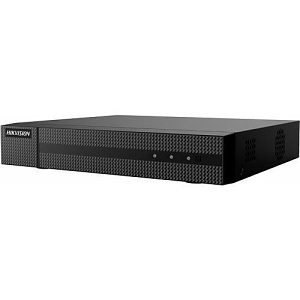

Stream and record up to four video channels with the ERT-F204 Value Express TurboHD Analog HD DVR from Hikvision at resolutions of up to 2MP. Equipped with one SATA interface, this DVR can accommodate up to 4TB of internal HDD storage (2TB preinstalled). The recorder supports TurboHD, AHD, HD-CVI, and SD analog Cameras via its BNC interface. Additionally, it has a 1-Channel IP video input for an IP Camera up to 1080p. With the help of H.264+ and H.264 compression, file sizes are kept manageable while recording and playback quality are maintained. The DVR's connectivity interface includes a 10/100M self-adaptive Ethernet port and two USB 2.0 ports, as well as HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI and VGA connections can output up to 1920 x 1080 resolution video.
General Information
Name : Hikvision ERT-F204 Hybrid Video Recorder , Hikvision
Category : Hybrid Video Recorders
UPC Code :
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HX-ERTF204
Brand Name : Hikvision
Manufacturer : Hikvision
Manufacturer Part Number : ERT-F204
Product Model : ERT-F204
Product Name : Hikvision ERT-F204 Value Express TurboHD 4-Channel 2MP Analog HD DVR with 2TB HDD
Product Type : Digital Video Recorder
Weight : ≤2.2 lb
Technical Information
Maximum Frame Rate : 30 fps
Number of Channels : 4
Video Formats : H.264, H.264+
Audio
Hard Drive Included : Yes
Interfaces/Ports
HDMI : Yes
Number of USB Ports : 1
Number of VGA Outputs : 1
VGA : Yes
Network & Communication
Ethernet : Yes
Physical Characteristics
Depth : 8.7"
Height : 1.8"
Width : 10.2"
Storage
Hard Drive Capacity : 2TB
Miscellaneous
Country of Origin : CN
