Product Overview

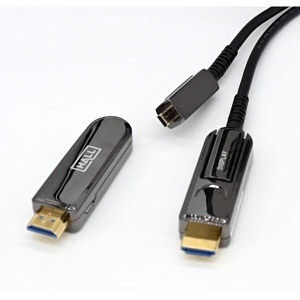

Our new Javelin 18Gbps 4K plenum-rated active fiber optic HDMI cable is engineered to be versatile to any application and installation. It supports 18Gbps while maintaining a lightweight and flexible design. Currently the cable is available at lengths of 10, 15, 25, 30, 50, 75 and 100 meters (33, 50, 75, 100, 150, 200 and 333 ft). A pulling capsule with eyelet is provided in each package to aid with pulling. The capsule snaps onto the proprietary connector at the cables end. The plug-n-play cable requires no external power supply. Power is drawn from the 5v signal pin of the source HDMI output. The cable draws less than 0.25w of power from the source. The Javelin 4K Plenum-rated cable can be used as a regular HDMI cable but without the worry of boosters or equalizers, being Plenum rated, also makes it possible to be used in any installation environment. Applications include home theater, conference rooms, schools, airports, hospitals, and more.
Specifications
ADI Part Number HH-CHDJAV4K0 Brand Name Hall Technologies Manufacturer Part Number CHD-JAV4K-DE10
Cable Type HDMI Jacket Type Plenum
Cable Length 32.8'
Environmental Certification CE, FCC, RoHS 2 Environmentally Friendly Yes Features HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range), High pulling strength and compression load, Reduced EMI and RFI, Supports 18Gbps Maximum Data Rate, Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep color, Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
