Pass & Seymour CS20AC1-W 20A 120/277VAC Wire Combination Single Pole Switch, White
CS20AC1-W|H4-CS20AC1W
Pass & Seymour CS20AC1-W 20A 120/277VAC Wire Combination Single Pole Switch, White
CS20AC1-W|H4-CS20AC1W
Pass & Seymour by Legrand
Pass & Seymour CS20AC1-W 20A 120/277VAC Wire Combination Single Pole Switch, White
CS20AC1-W | H4-CS20AC1W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

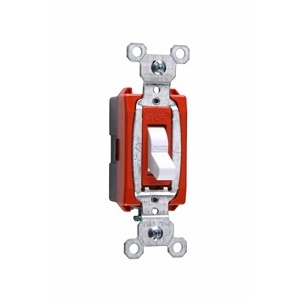

The On-Q CS20AC1-W 20A 120/277VAC Wire Comm SP by Pass & Seymour by Legrand is a heavy-duty electrical switch designed for reliable performance and durability. It features a one-piece brass alloy contact arm and oversized silver alloy contacts that enhance electrical reliability and prolong switch life. The switch incorporates a one-piece steel strap with integral ground, plated for corrosion resistance, and a high-strength thermoplastic polycarbonate toggle resistant to breaking and chipping. Additional robust features include glass-reinforced nylon back body with locking support, tri-drive terminal and mounting screws, and options for side wire or external screw-pressure-plate back and side wire models suitable for #14 to #10 AWG copper or copper-clad wire.
Main Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
General Information
Name: Pass & Seymour CS20AC1-W 20A 120/277VAC Wire Combination Single Pole Switch, White
Category: Pass & Seymour by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007126471
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-CS20AC1W Brand Name Pass & Seymour by Legrand Manufacturer Part Number CS20AC1-W Product Name Commercial Specification Grade Switch, White Product Type Switch
Color White Depth 1.073" Height 3.28" Width 1.32"
Current Rating 20A
Certifications & Standards UL 20, UL 498 Country of Origin MX
