Belden 6300FE 8771000 18/2 Security and Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) Reel

Brand: Belden
ADI #:7B-6300FE871 Model #: 6300FE 8771000  Name: Belden 6300FE 8771000 18/2 Security and Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) Reel
  • Element: Conductor(s)
  • Size: 18 AWG
  • Material: BC - Bare Copper
Belden 6300FE 8771000 Security and Sound, 18-2C, BC, O/A Foil, CMP, 1000' (304.8m) Reel, Natural

Product Overview

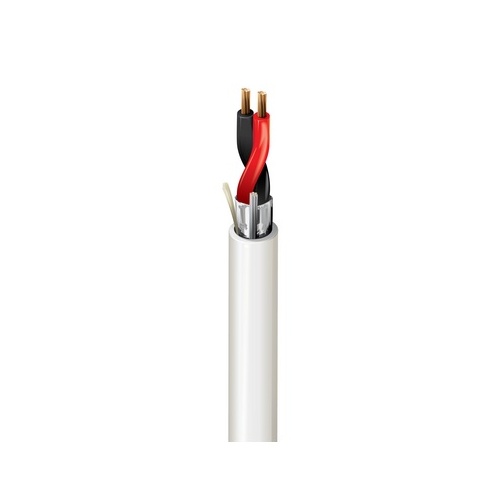

Security & Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) bare copper conductors with Flamarrest® insulation, Plenum-CMP, Flamarrest® jacket with ripcord

General Information

Name : Belden 6300FE 8771000 18/2 Security and Commercial Audio Cable, CMP, BC, O/A Foil, 1000' (304.8m) Reel , Belden
Category : Plenum Audio Cables
UPC Code :
Country of Origin : Mexico. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : 7B-6300FE871
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 6300FE 8771000
Product Model : 6300FE
Product Name : Security & Sound, #18-2c, BC, O/A Foil, CMP
Product Type : Audio Cable

Technical Information

Cable Listing : CMP
Device Supported : Audio Device, Intercom, Security System, Speaker
Jacket Type : CMP, FT6, Plenum
Solid or Stranded : Stranded

Physical Characteristics

Cable Length (mm) : 304800
Color : Clear
Insulation Material : Flamarrest

Miscellaneous

Environmental Certification : CEC, China RoHS, EU WEEE, ROHS
Environmentally Friendly : Yes
Features : Bendable, Stranded
