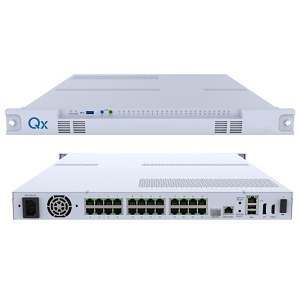

Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 4TB HDD
520
|Q1-QXE52004
Hard Drive Capacity: 4TB
Number of Channels: 24
Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 4TB HDD
520 | Q1-QXE52004
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
QxEnergy QXE520-04 is a QxControl gateway appliance that delivers the convenience of integrated PoE+ ports to power and connect your cameras and door controllers, in a 1U rackmount format, for installations where 2TB of local video storage is desired. QxControl is a modern take on Video Management and Access Control software. With QxControl, commercial customers can manage their physical security from anywhere, on any device that runs a browser, using a cybersecure, intuitive UI.
Main Features
- Up to 32 cameras and 64 total resources
- Up to 60TB of local storage
- Intel 7th Gen Core i7-7700 Processor (Kaby Lake S)
- Dual Uplink ports
- 24-10/100 Mbps ports with PoE+, 30W per port with a total power budget of 240W, 10/100/1000 ingress between ports & CPU
- 90-264 VAC / 47-63 Hz
- Input Power: Max 200 Watts
- Operating Temp: 0°C-40°C
- 1U form factor, 19" w x 19" d x 1.75" h
- Three year warranty
General Information
Name: Qumulex QXE520 QxEnergy Rackmount Gateway Appliance for QxControl, 24-Port PoE, 4TB HDD
Category: Qumulex, Video Surveillance, Recording Devices & Servers, Video Surveillance Servers
UPC Code: 810132780547
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number Q1-QXE52004 Brand Name Qumulex Manufacturer Qumulex Manufacturer Part Number QXE520-04 Product Line QxEnergy Product Model 520 Product Name QxEnergy 520 Product Series 520 Product Type Video Surveillance Station
Connectivity Technology Wired Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T Number of Channels 24 Power Consumption 200W Storage Capacity 4TB
TAA Compliant No
HDMI Yes Number of USB Ports 1
Ethernet Yes Remote Management Yes
Depth 19" Height 1.8" Weight 30.90 lb Width 19"
Hard Drive Capacity 4TB
Limited Warranty 3-Year
ADI Cloud Storage Eligible Yes Country of Origin US
