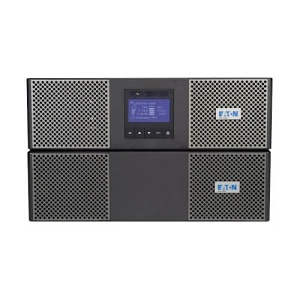

Eaton Tripp Lite 9PX8K 9PX Online Double-Conversion UPS, Cybersecure Network Card, Extended Run, 6U Rack / Tower, 8000VA, 7200W, 208V, 3-Output L6-30R Hardwired
9PX8K
|TC-9PX8K
Shop all Eaton Tripp Lite
Eaton Tripp Lite 9PX8K 9PX Online Double-Conversion UPS, Cybersecure Network Card, Extended Run, 6U Rack / Tower, 8000VA, 7200W, 208V, 3-Output L6-30R Hardwired
9PX8K | TC-9PX8K
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
8kVA/7.2kW/208V Battery Backup for IT Installations and Edge NetworksThis 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX8K is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.Expandable Battery Backup Keeps You Operational Through Power OutagesValve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to five extended battery modules (9PXEBM240RT, sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT, sold separately). The included 9PX maintenance bypass (MBP11K208) lets you service or replace the entire UPS without powering down connected equipment.Included Gigabit Network Interface Offers 24/7 Remote AccessThe NETWORK-M3 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.NEMA Outlets Protect Your Connected ComponentsThree L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX8K also supports hardwired output.Rotating LCD Interface Keeps You Informed at a GlanceThe intuitive front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.Versatile Installation OptionsYou can mount the 9PX8K in a tower configuration on a flat, stable surface or in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. A cable gland is included for hardwire input.
Main Features
- 8000VA/7200W Power capacity for robust backup
- Online double-conversion for reliable Power protection
- Cybersecure network card for remote management
- Expandable battery backup with extended runtime
- Rotating LCD for easy monitoring and control
- Compatible with Cisco switches and servers
- Advanced battery management for longer battery life
- NEMA Outlets with pure sine wave AC output
- Versatile installation: rack or tower configuration
- RS-232 and USB Ports for communication options
General Information
Name: Eaton Tripp Lite 9PX8K 9PX Online Double-Conversion UPS, Cybersecure Network Card, Extended Run, 6U Rack / Tower, 8000VA, 7200W, 208V, 3-Output L6-30R Hardwired
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, UPS
UPC Code: 0743172043504
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-9PX8K Brand Name Eaton Tripp Lite Manufacturer Part Number 9PX8K Sector Data Comm & Networking
Application/Usage Commercial Output Voltage 280V Receptacle Type NEMA L6-30R
Battery Chemistry Sealed Lead Acid (SLA)
Depth 30" Height 10.2" Rack Height 6U Width 17.3"
Input Voltage 208V
Limited Warranty 3-Year
Environmental Certification CE, cULus
